With their respective special characteristics Velio acoustic curtains and drapes provide solutions for a wide range of architectural situations. They are made to measure, and these different solutions can easily be combined together.
Velio flexible partitions can be drawn or pulled back instantly depending on requirements. They contribute to the visible reorganisation of spaces, while enhancing their acoustic and thermal comfort.

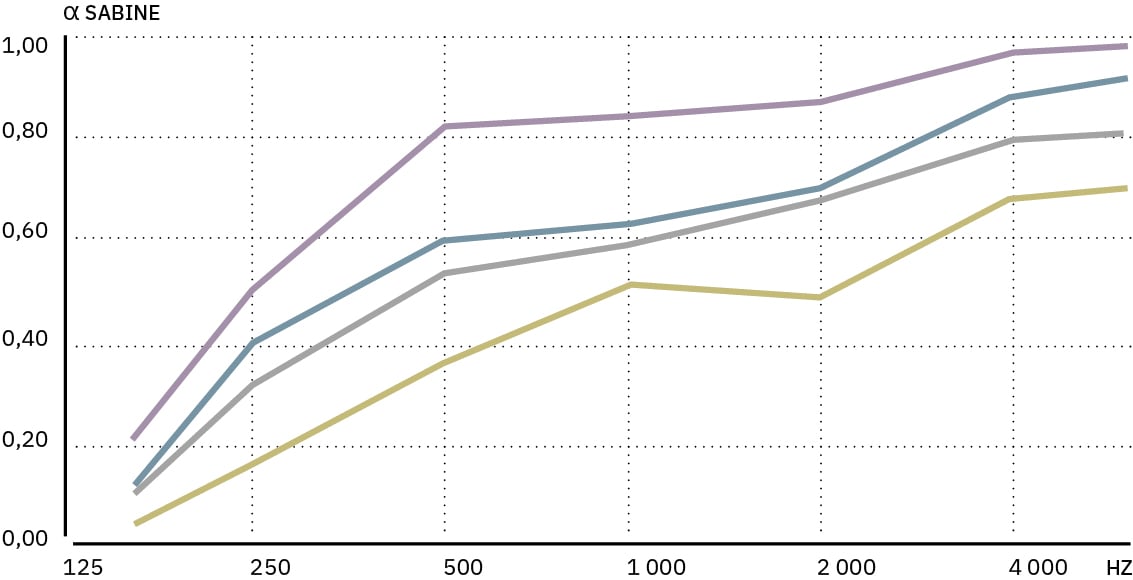

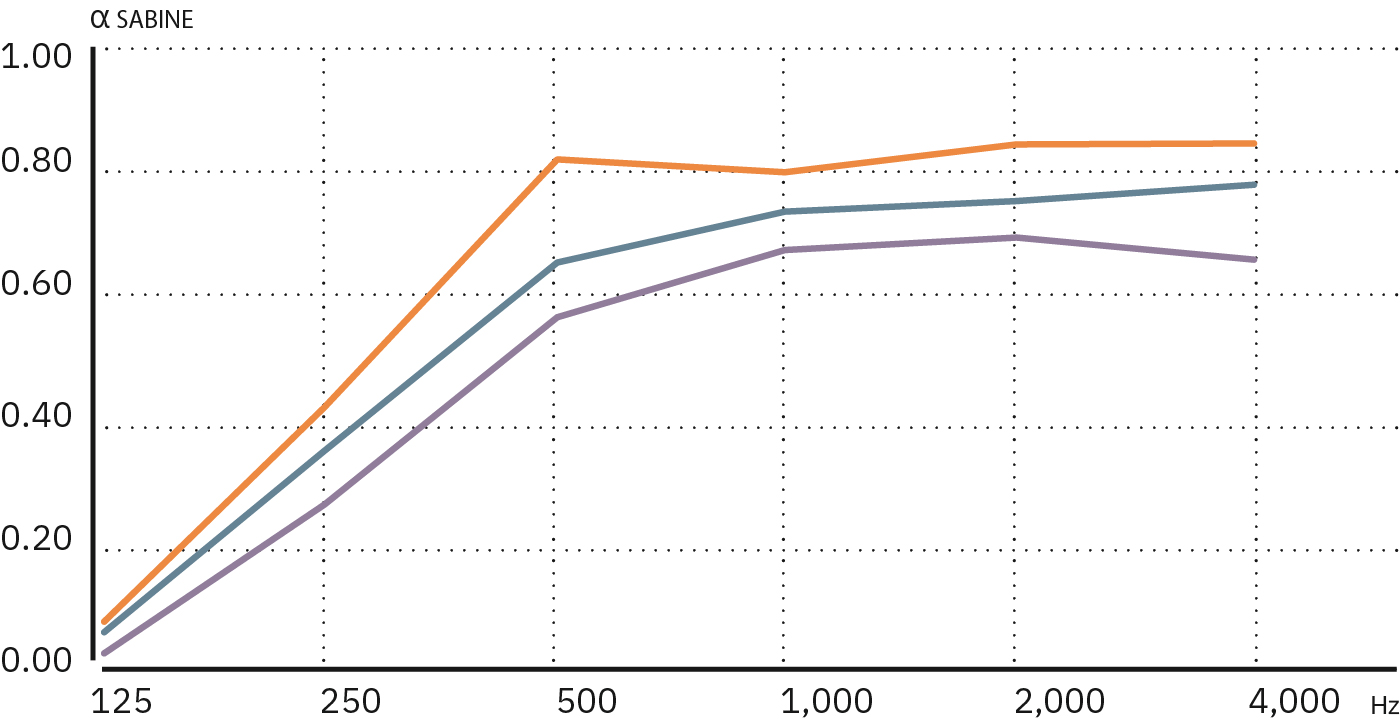

Performance of Alpha sound-absorbing and DB sound-reducing acoustic curtains positioned 100 mm from the vertical surface.

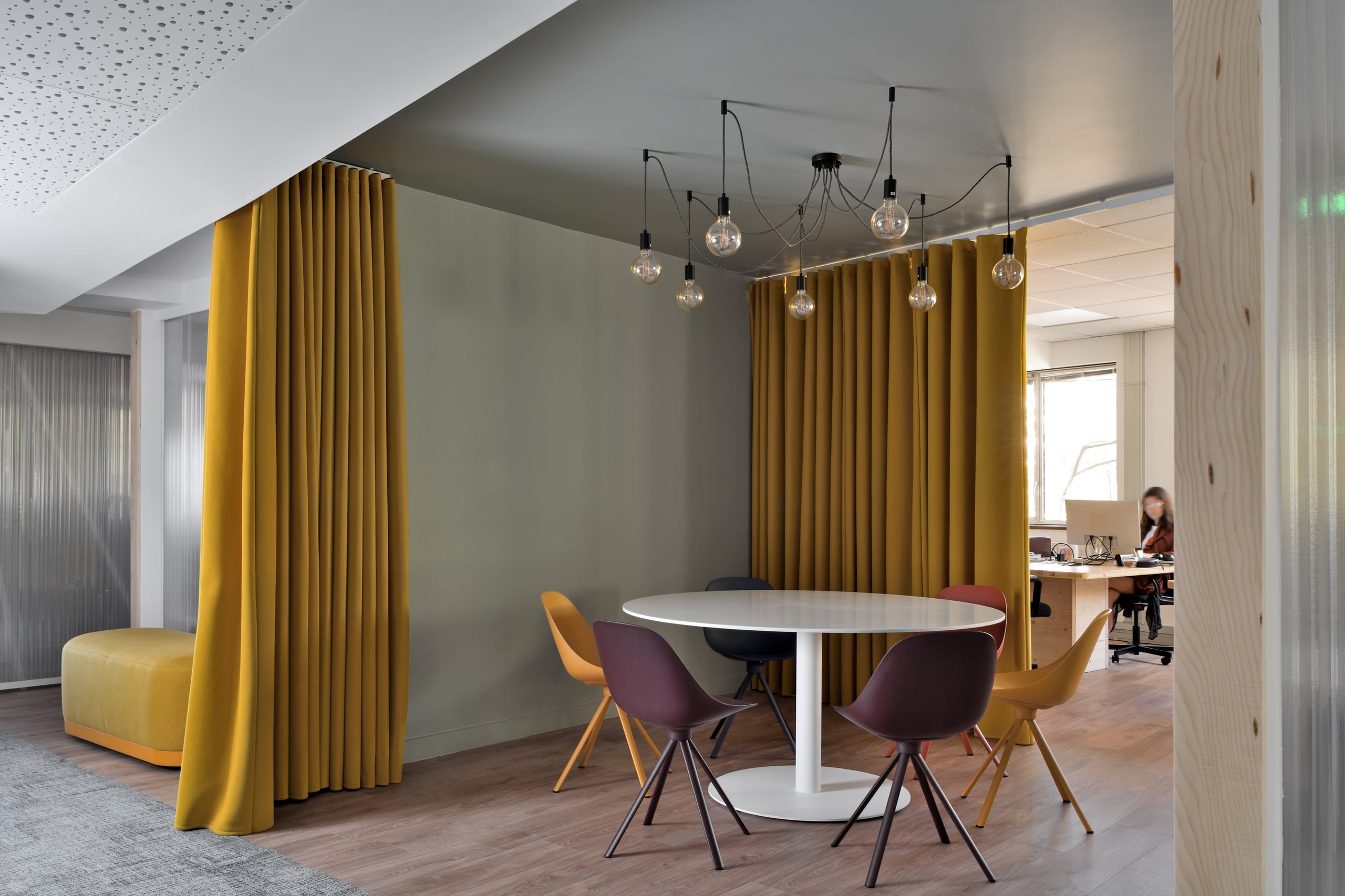

Alpha sound-absorbing acoustic curtains, hung in an area or in front of glazing, help control sound and light levels. DB sound-reducing acoustic curtains contribute additionally to the reduction of sound between two areas. Velio drapes can be used to mark the boundaries of areas without totally closing them off.
Alpha sound-absorbing acoustic curtains installed in front of glazing to manage the acoustics of music practice rooms by drawing them or not

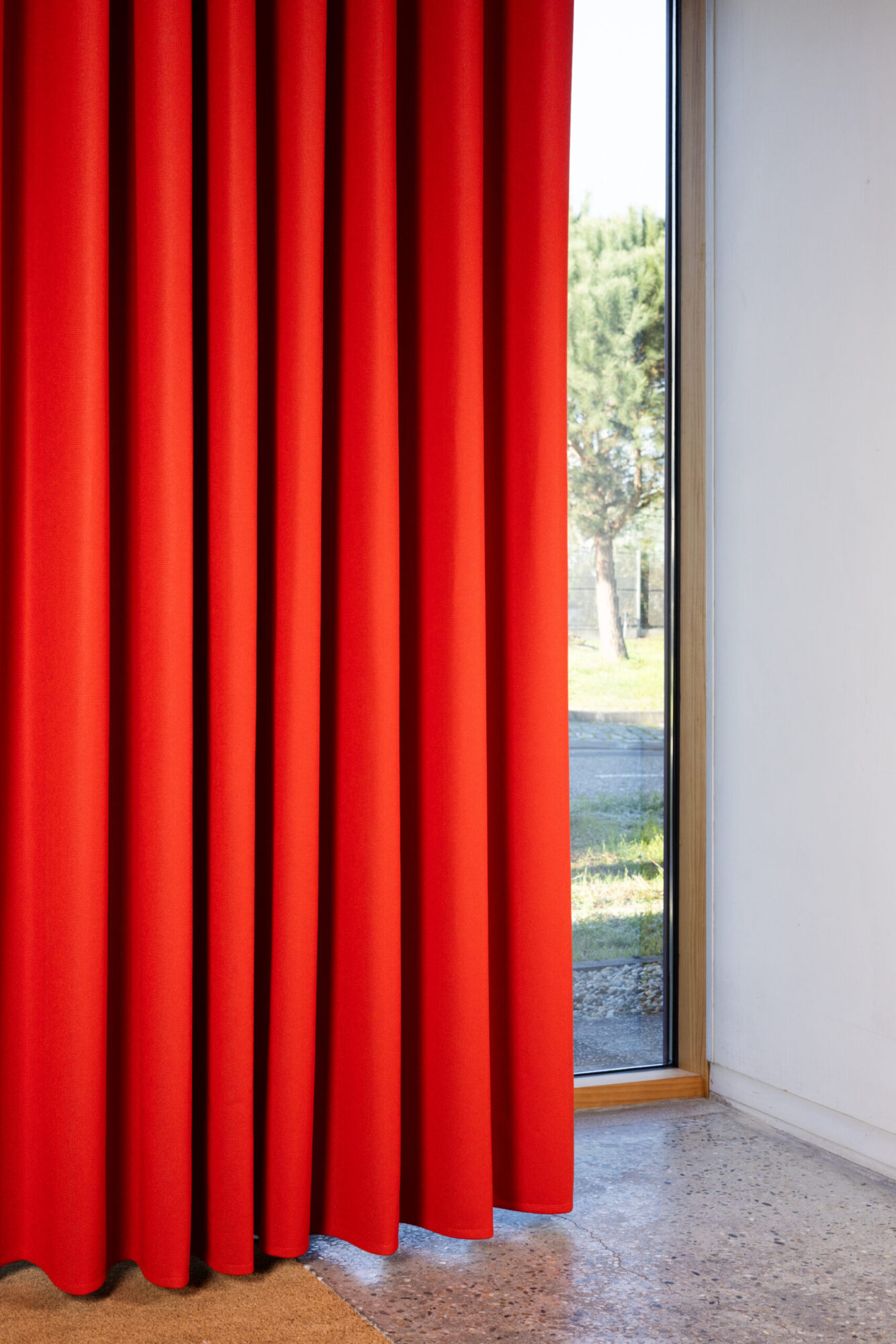

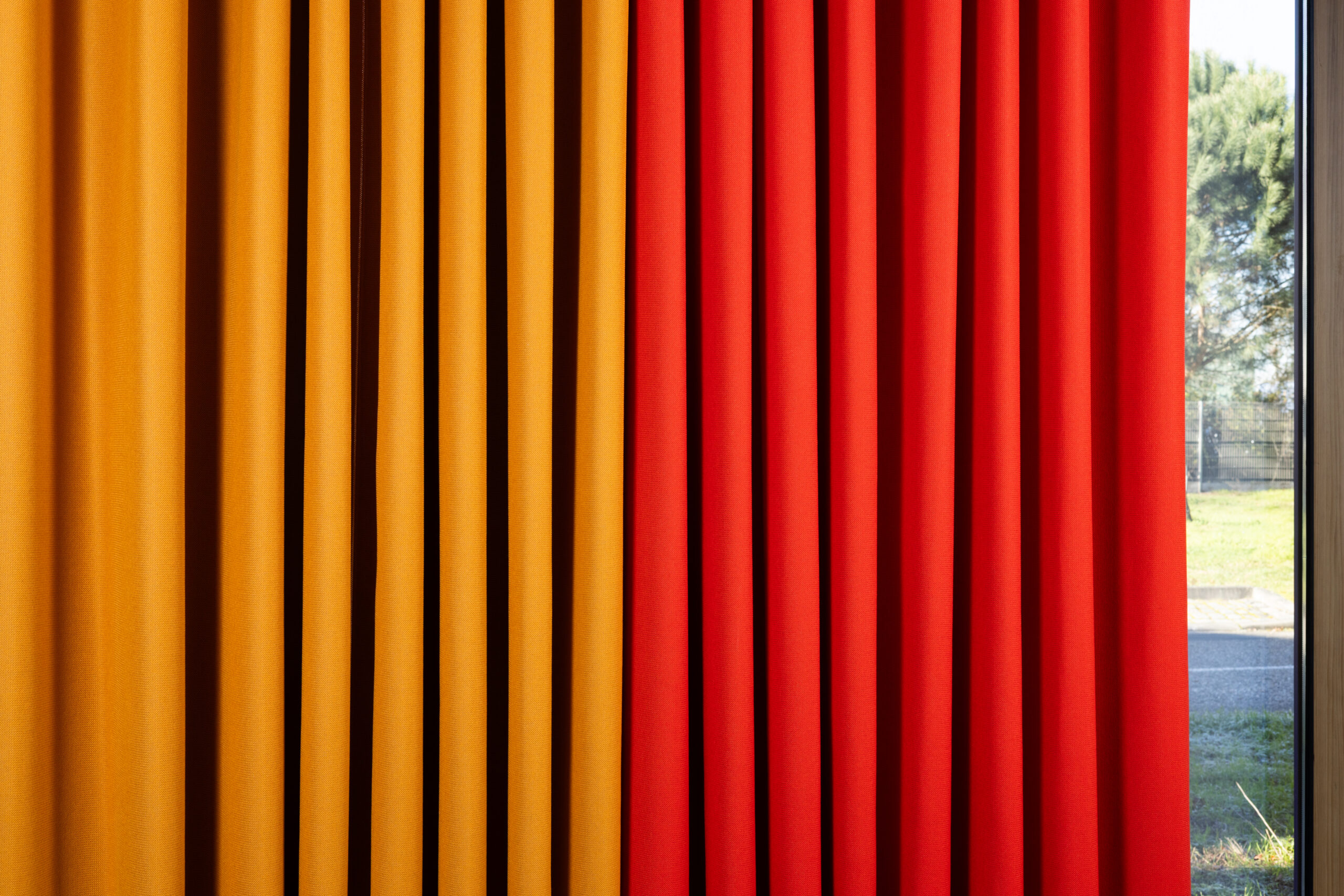

Hung in front of glazing, Texaa’s Alpha sound-absorbing acoustic curtains absorb resonating sounds, filter light and improve occupants’ comfort.
Texaa Alpha sound-absorbing acoustic curtains regulate sound absorption, while also acting on the level of light in a room, seen here in the head offices of William Grant & Sons Distillers Ltd. in Richmond, London.

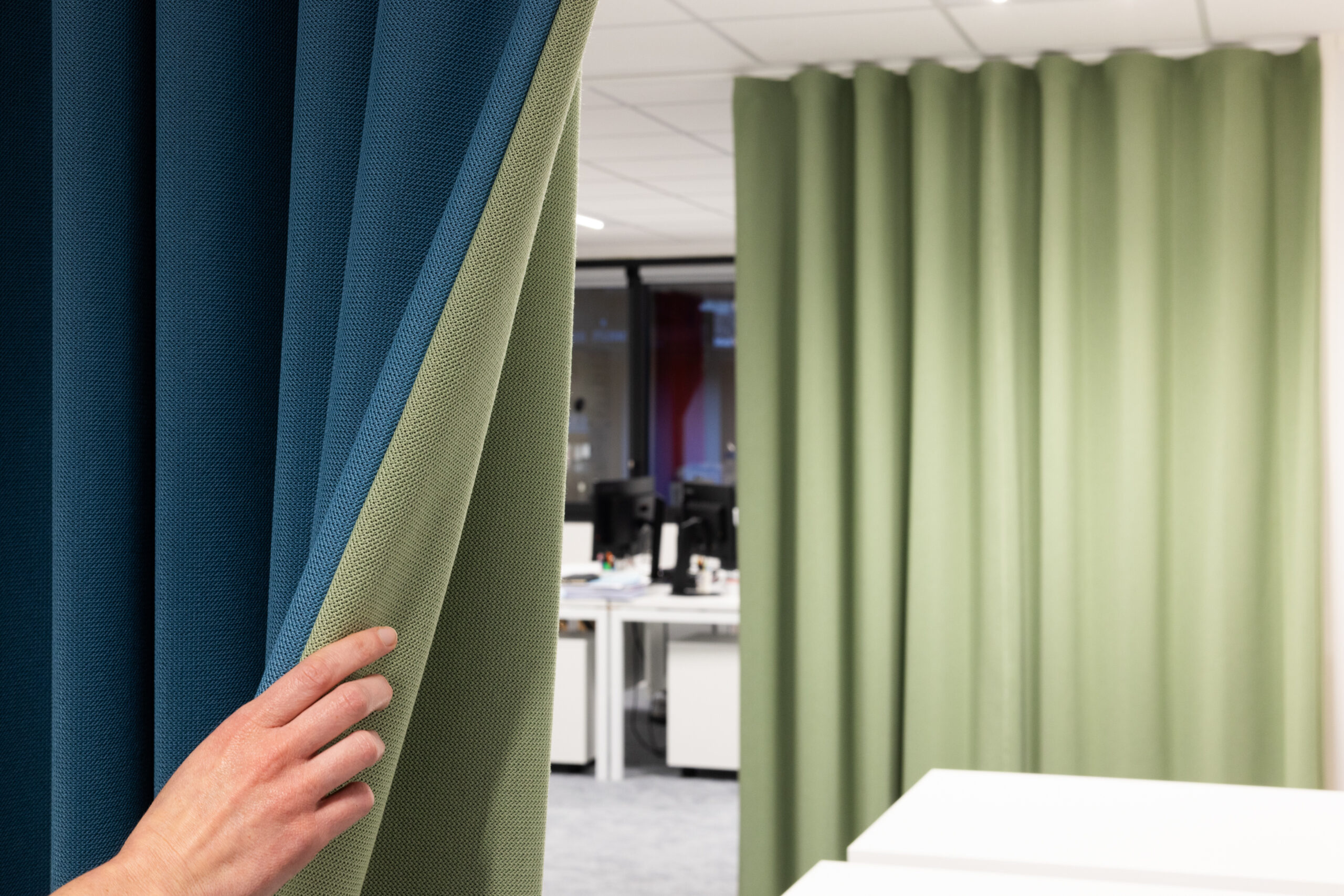

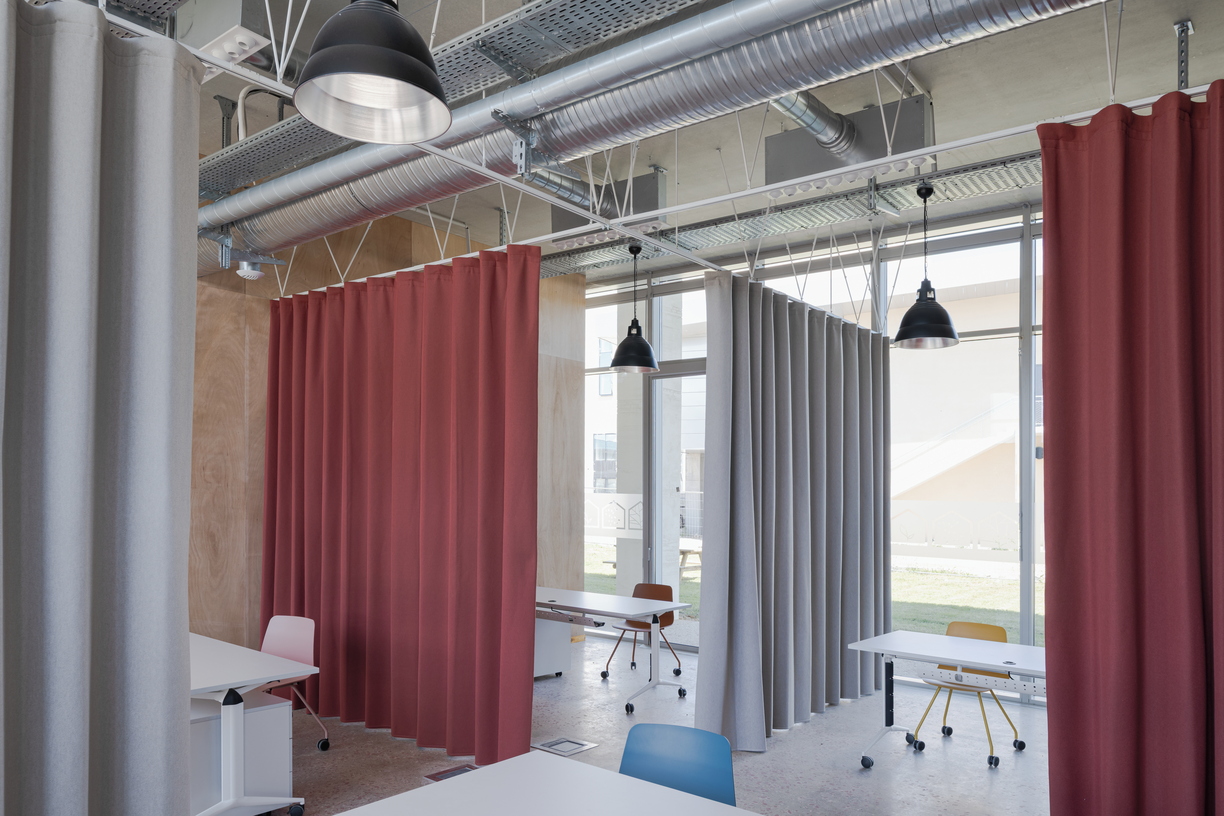

Texaa sDB sound-reducing acoustic curtains are a flexible way to provide visible boundaries to spaces, seen here in shared workspaces at the Crown Estate, Bessborough Street in London.
Previewed at the architect@work Paris exhibition,
DB sound-reducing acoustic curtains reduce sound transmission between two rooms.

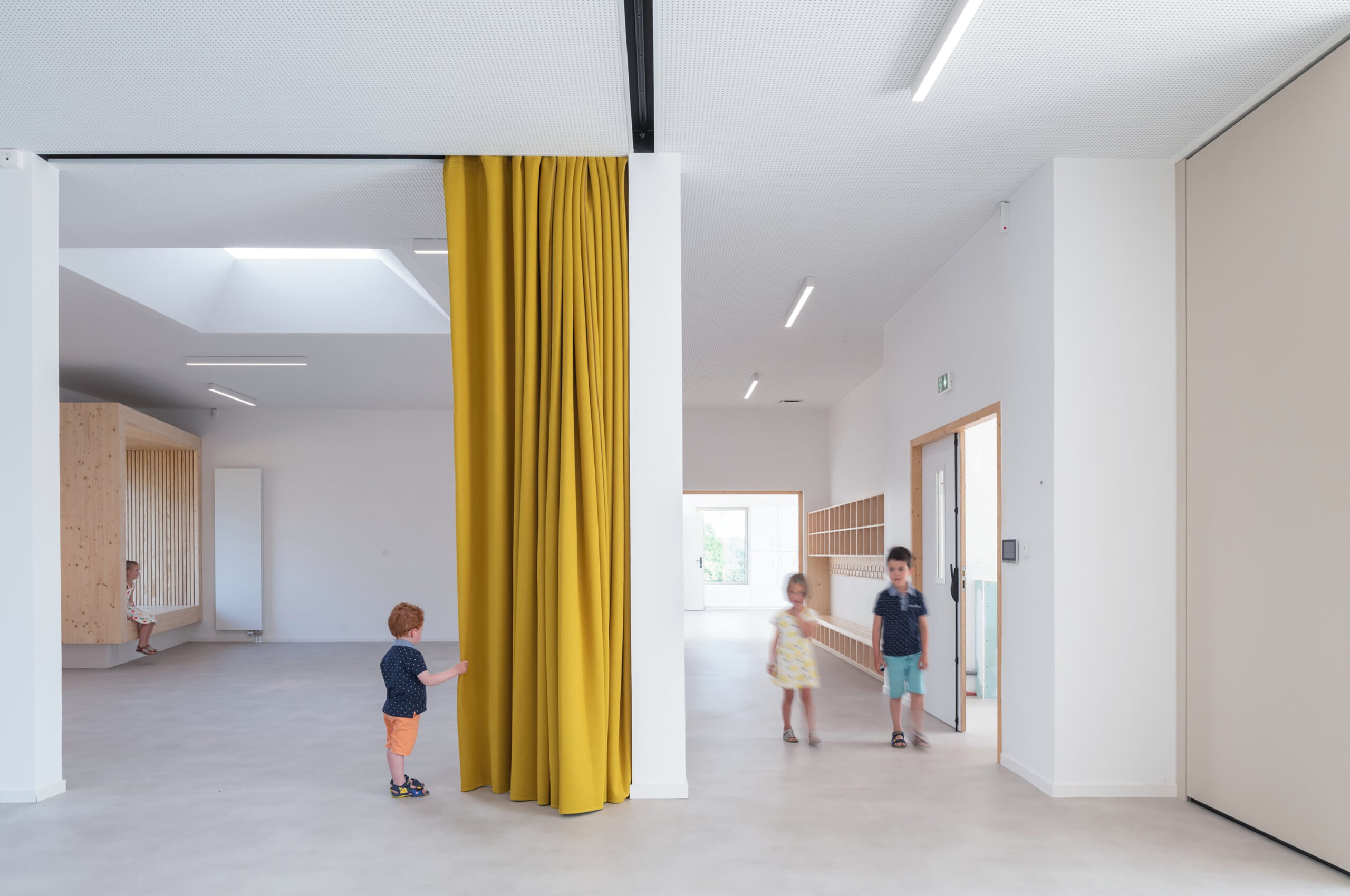

DB sound-reducing acoustic curtains mark the boundaries of a room enabling it nevertheless to be completely open, so that a space is never permanently partitioned.
Texaa’s Velio drapes mark the boundaries of spaces without closing them off completely.
Texaa’s Maille Ronde Élargie (MRE) Aeria stitch, knitted in our workshop, has been especially designed to let light through, while creating a feeling of privacy.

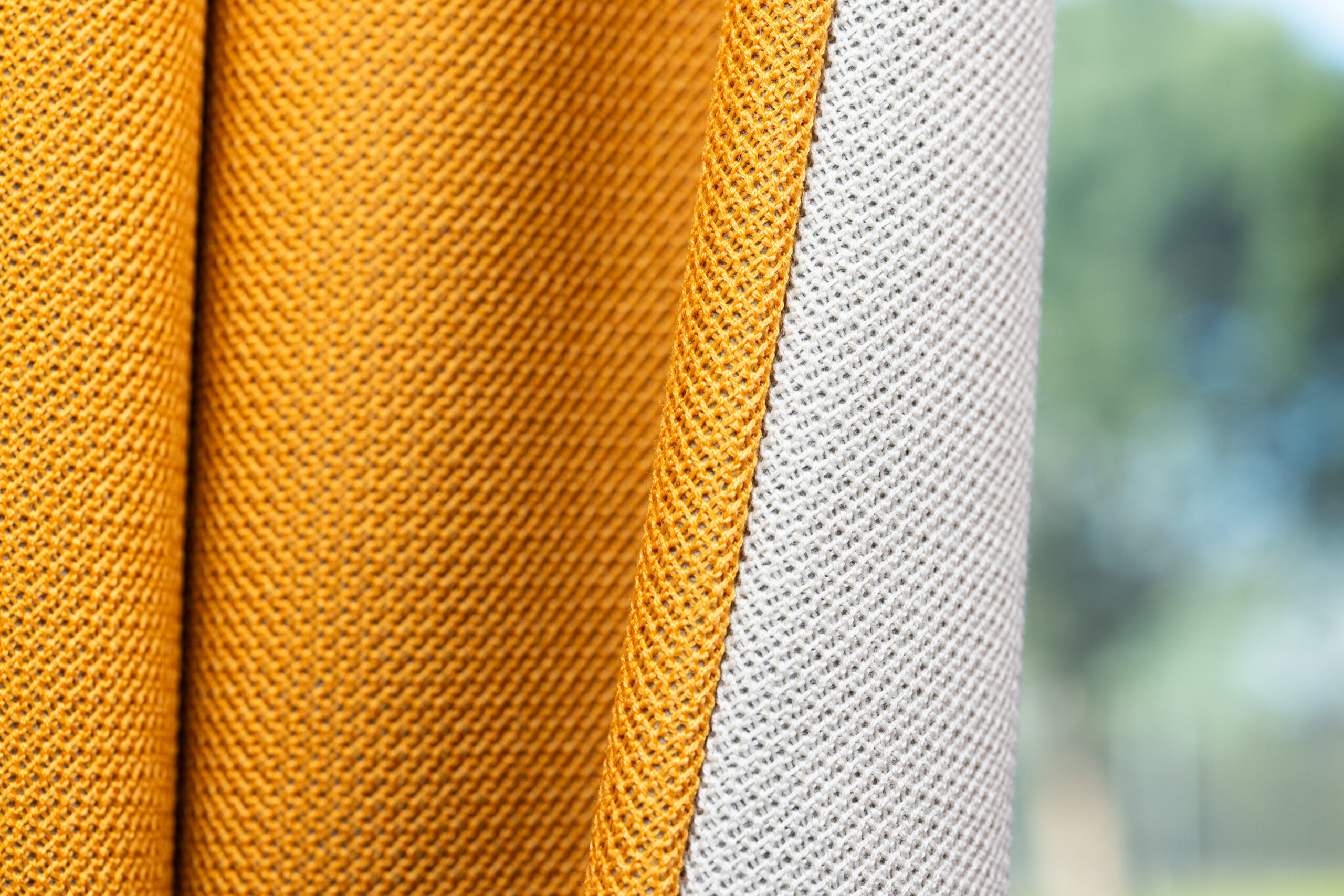

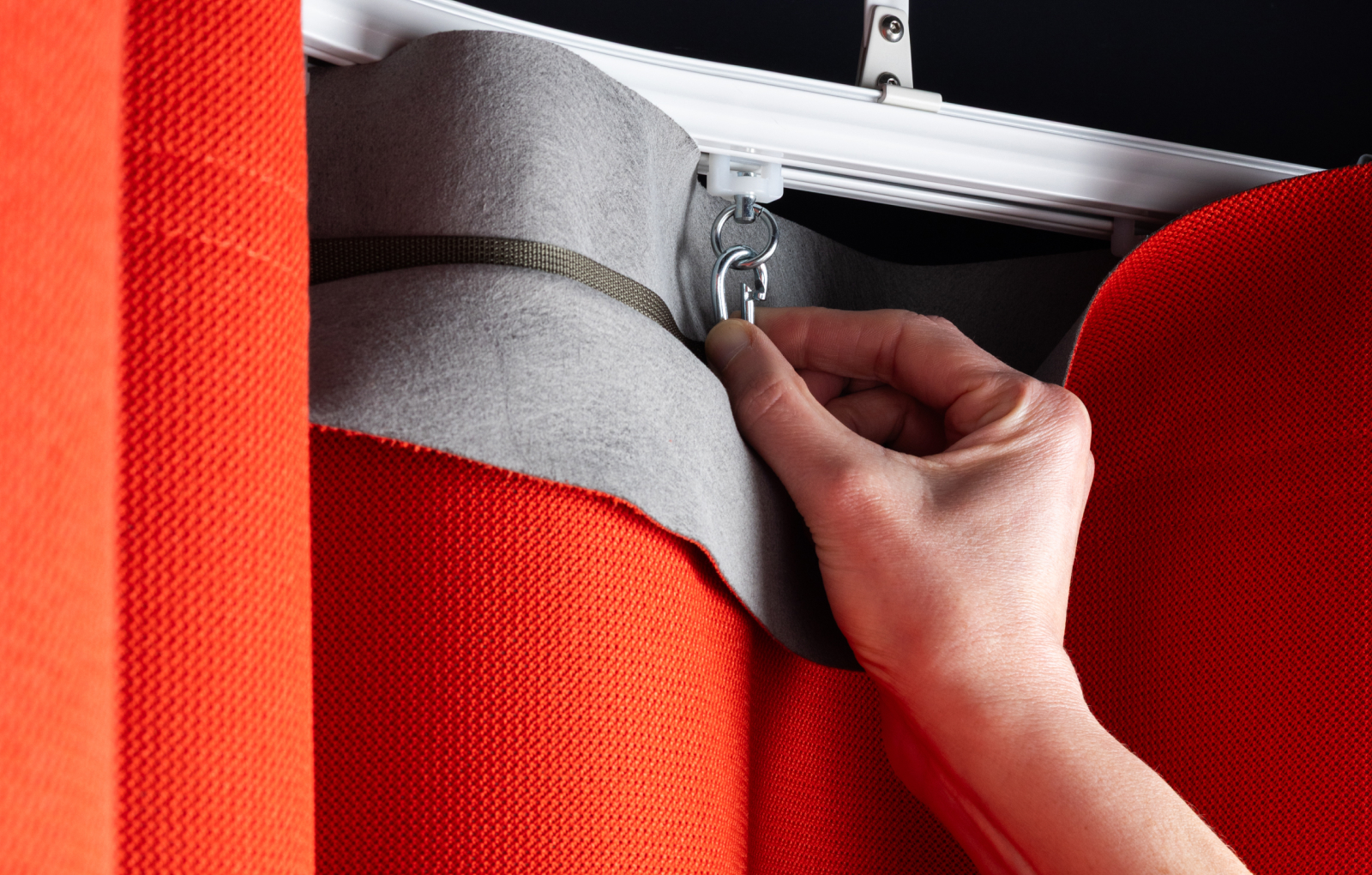

Texaa acoustic Curtains are made of two lengths of sound-absorbing felt wadding with an Aeria cover.
They are highly flame-resistant and clad on both sides with run-resistant, antistatic and dirt-repellent Aeria fabric, in combination with two thicknesses of 3-mm thick sound-absorbing black felt wadding and a core of six sound-damping layers.

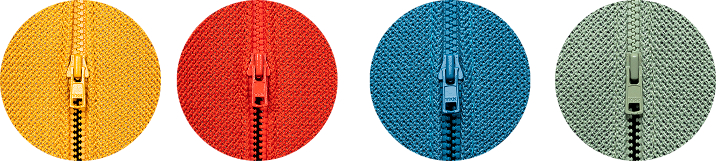

They can be zipped together with zippers that are sewn down their sides, making it possible to accommodate varying space dimensions.

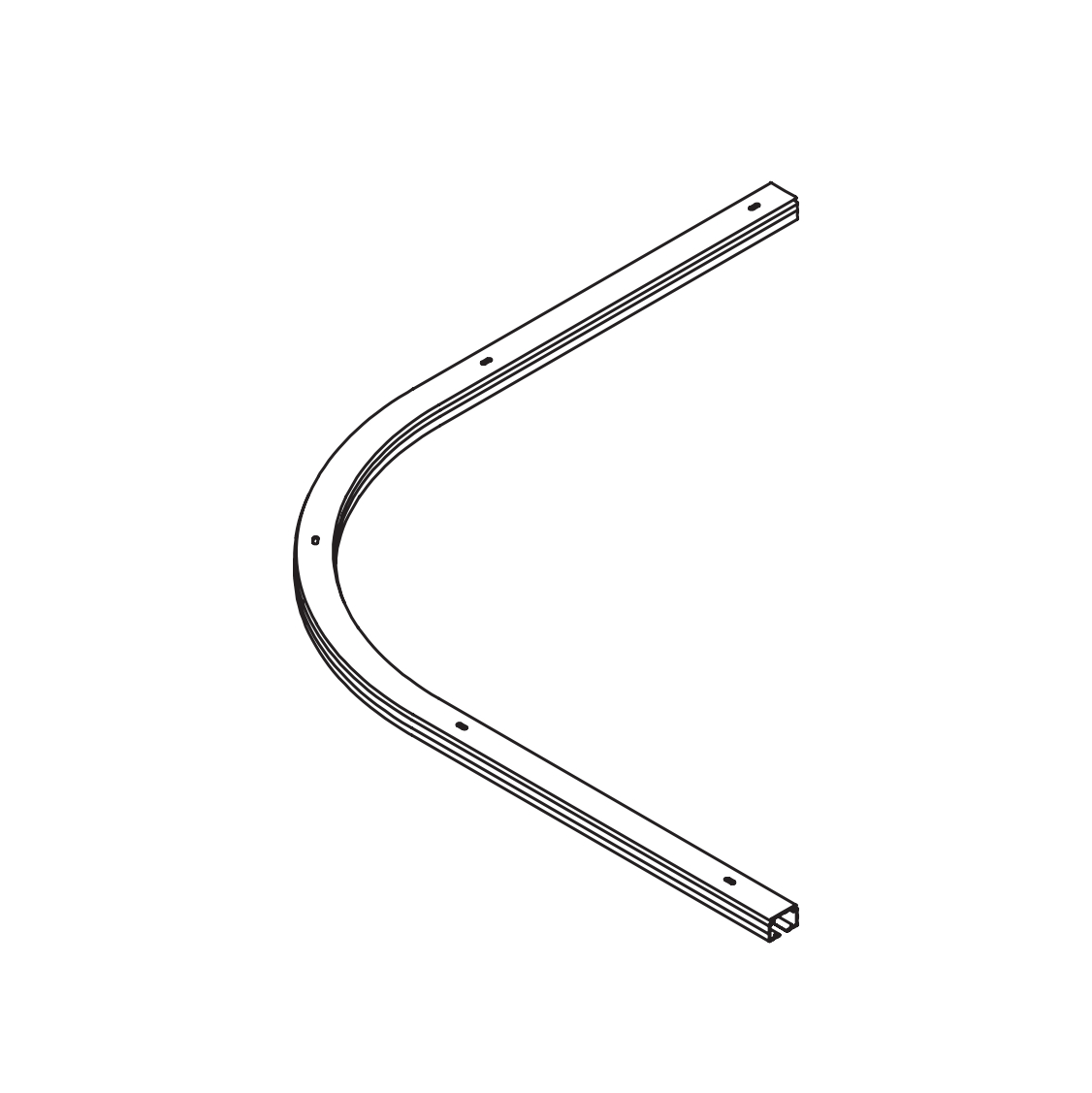

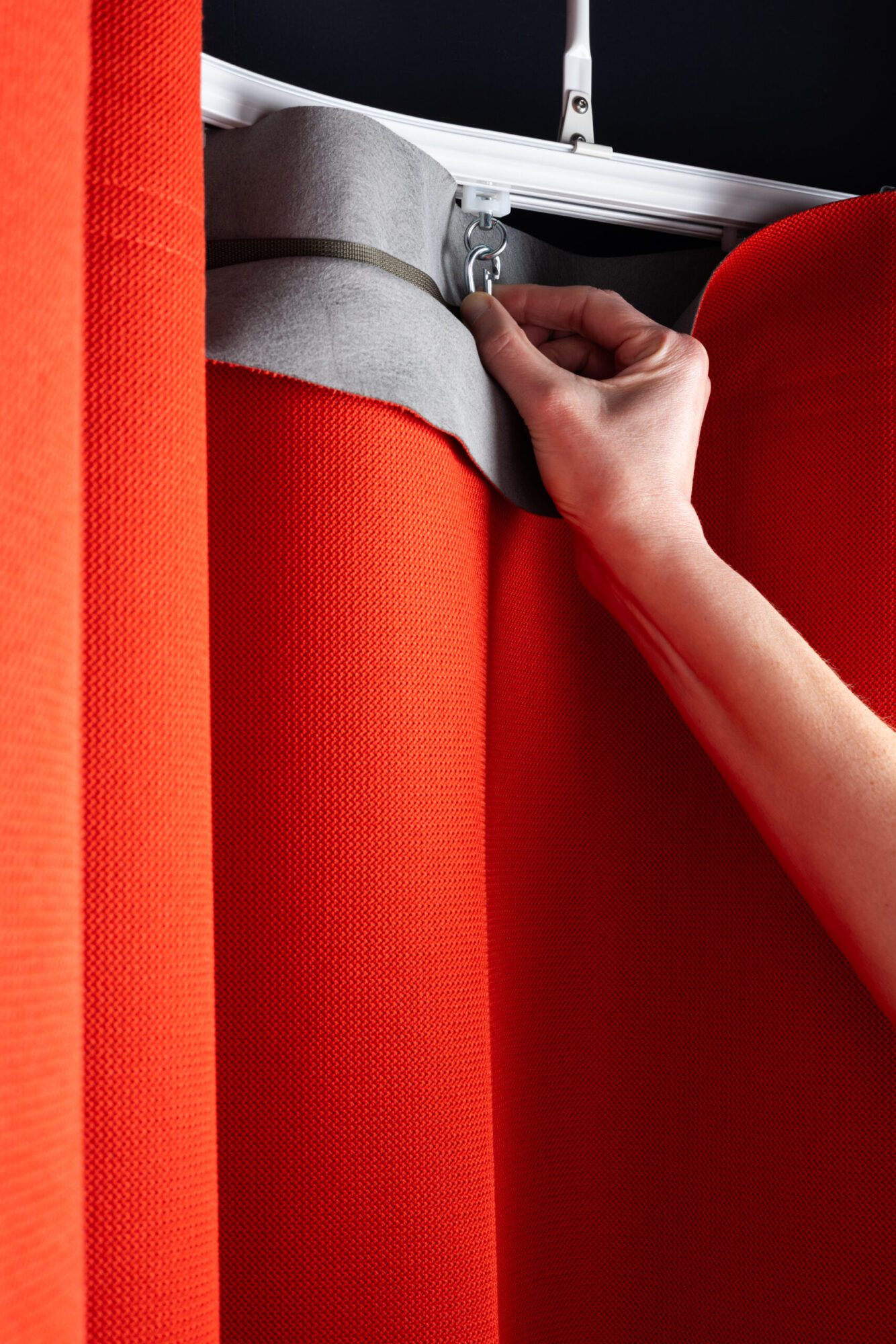

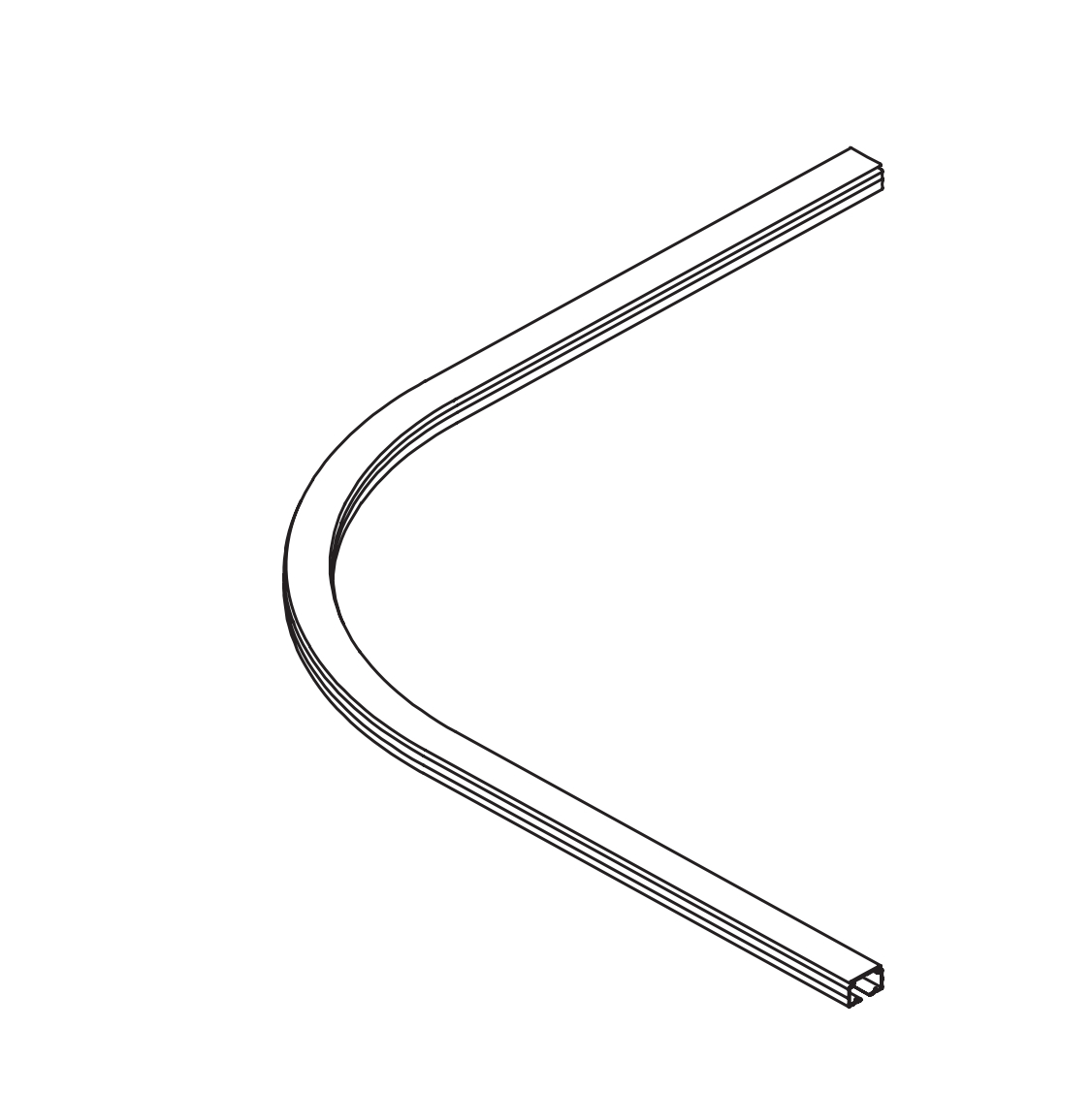

The curtains are hung from a rail fitted with rollers for easy drawing. For more static applications, the curtains may be fitted with eyelets (diameter 40 mm).
Texaa’s drapes make it possible to mark the boundaries of spaces without closing them off completely. The MRE open stitch, knitted in Texaa’s workshop from fully recycled fibres was especially designed to let light through, while concealing the environment behind it. In open spaces these drapes create a sense of boundary between areas with a very light installation and develop a feeling of privacy.
Texaa drapes are available in three shades: MRE980 (Granit), MRE640 (Nacre) and MRE680 (Taupe). Other colours are available on request.
Alpha sound-absorbing and DB sound-reducing acoustic curtains
Select from the 30 colours in the Maille Ronde (MR) palette. Special colours available on request.
Vieux rose
Rose rubis
Brique
Rouge
Bleu menthe
Bleu étang
Océan
Bleu nocturne
Lichen
Vert cactus
Prairie
Fougère
Vert beige
Cumin
Moutarde
Ivoire
Beige
Taupe
Nacre
Silex
Ciment
Quartz
Gris pierre
Granit
Graphite
Craie
Chiné naturel
Chiné brun
Chiné noir
Chiné graphiqueGrain de riz stitch options
Alpha sound-absorbing and DB sound-reducing acoustic curtains only. Subject to availability of stock.
MoutardeVelio Drapes
Select from the 3 colours in the Maille Ronde Élargie (MRE) palette. Special colours available on request.
Taupe
Granit
NacreSound absorption is provided by double-sided Texaa® Alpha sound-absorbing acoustic curtains which prevent light from passing. They are highly flame-resistant and clad on both sides with run-resistant, antistatic and dirt-repellent Aeria fabric, in combination with two layers of 3-mm thick sound-absorbing black felt wadding. Each curtain is hemmed at the bottom and may be joined to others using zips inserted in their side seams, matching the colour of the fabric chosen.
Sound absorption coefficient ɑw = 0.50 (H) for a Alpha sound-absorbing acoustic curtains hanging 100 mm away from the curtained surface, with a fulness of 1.5 (slightly pleated)
Sound absorption coefficient ɑw = 0.65 (H) for a Alpha sound-absorbing acoustic curtains hanging 100 mm away from the curtained surface, with a fullness of 2 (moderately pleated)
Weight: 1.05 kg / m² (curtain with no pleating)
Maximum height: 4 m
Stretching prior to stabilisation: approximately 1%
Performance of Aeria 330 g/m2 run-resistant fabric
Protection against soiling:
Hydro/oleo-phobic ≥ 5 (AATCC118 and AATCC193)
Electrostatic properties 7.1010 Ω (EN 1149-1)
B-s2,d0
Vacuum cleaning, may be removed and refitted
10 years
Select from the 30 colours in the palette. Special colours available on request.

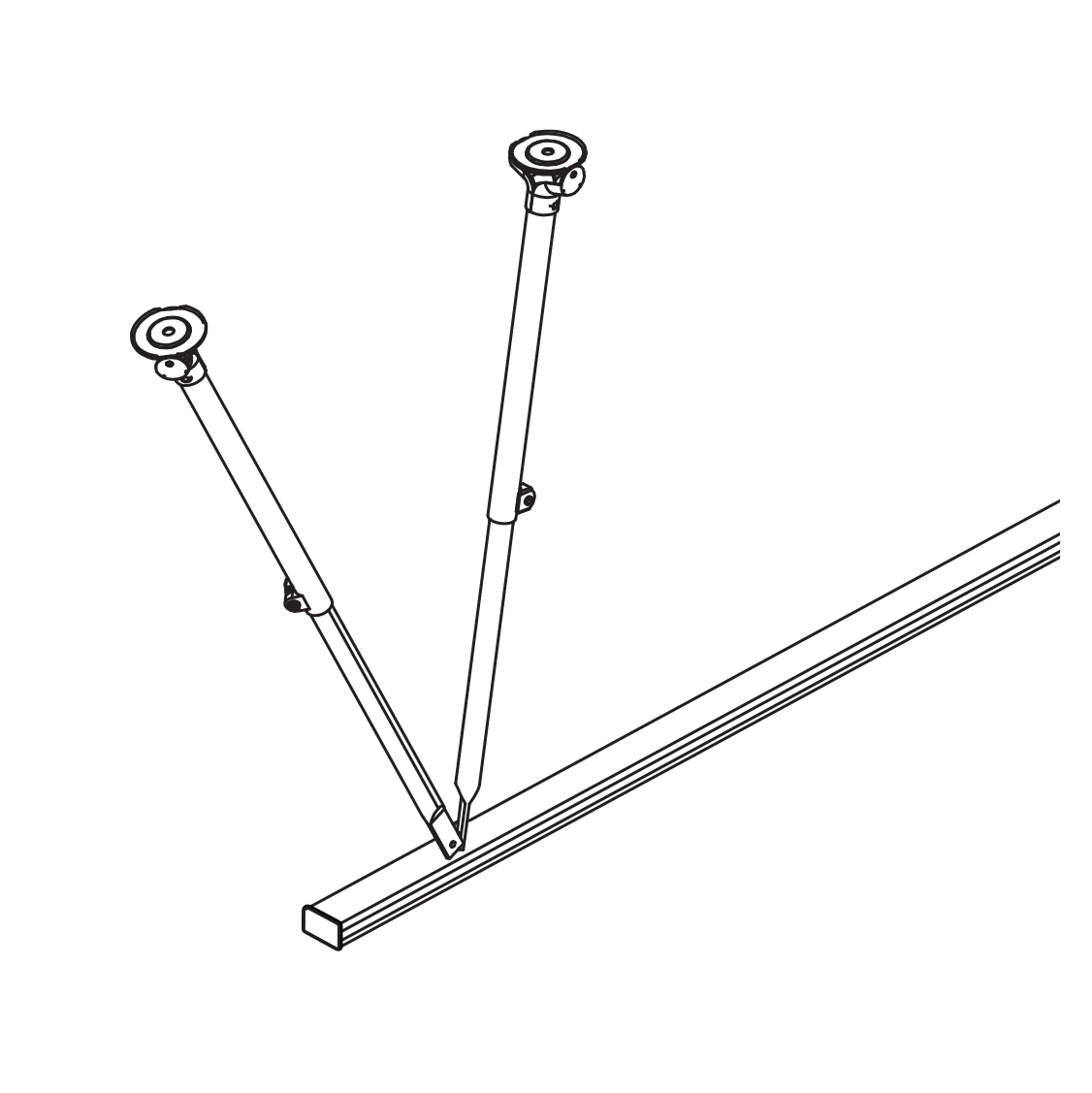

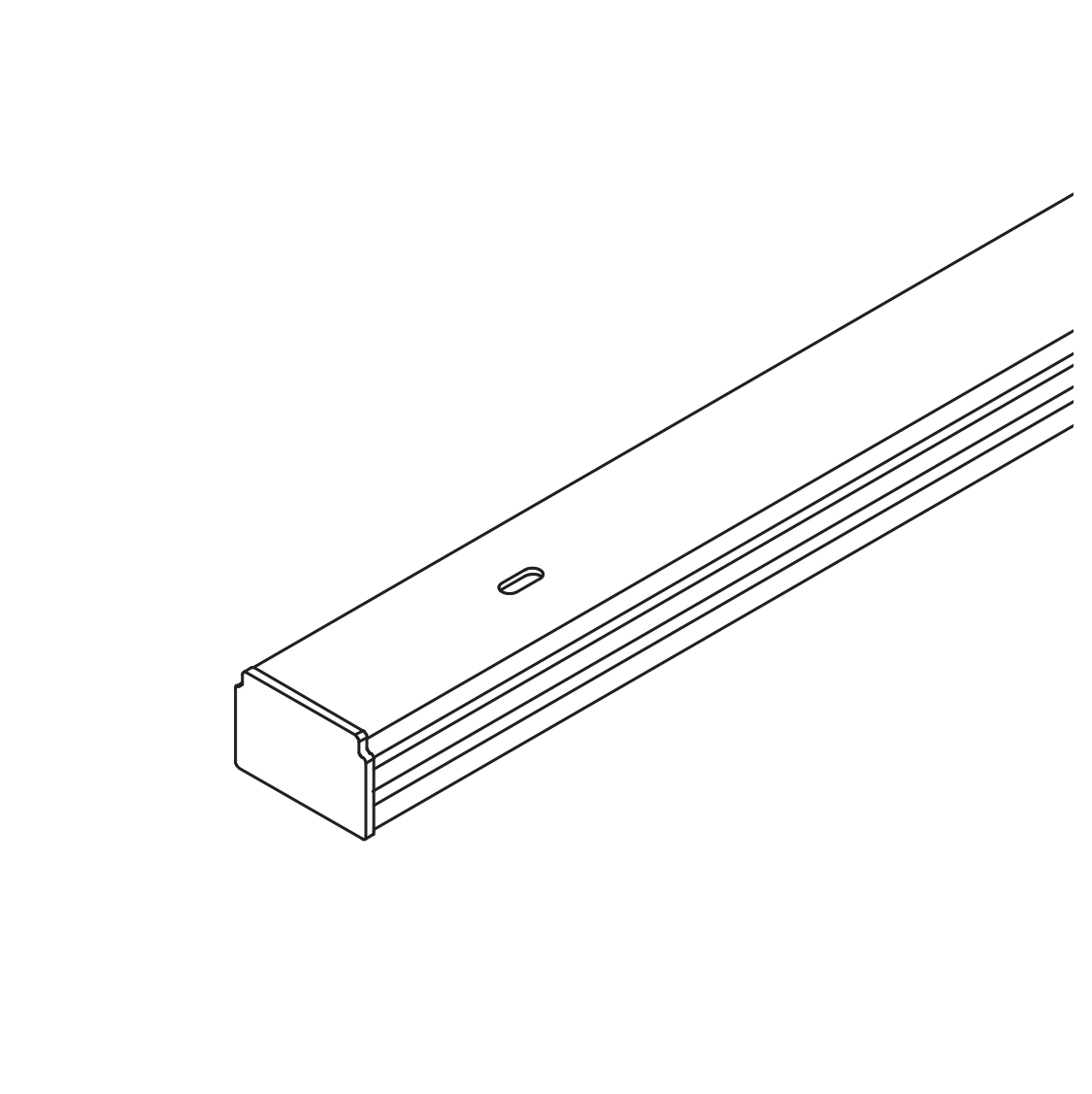

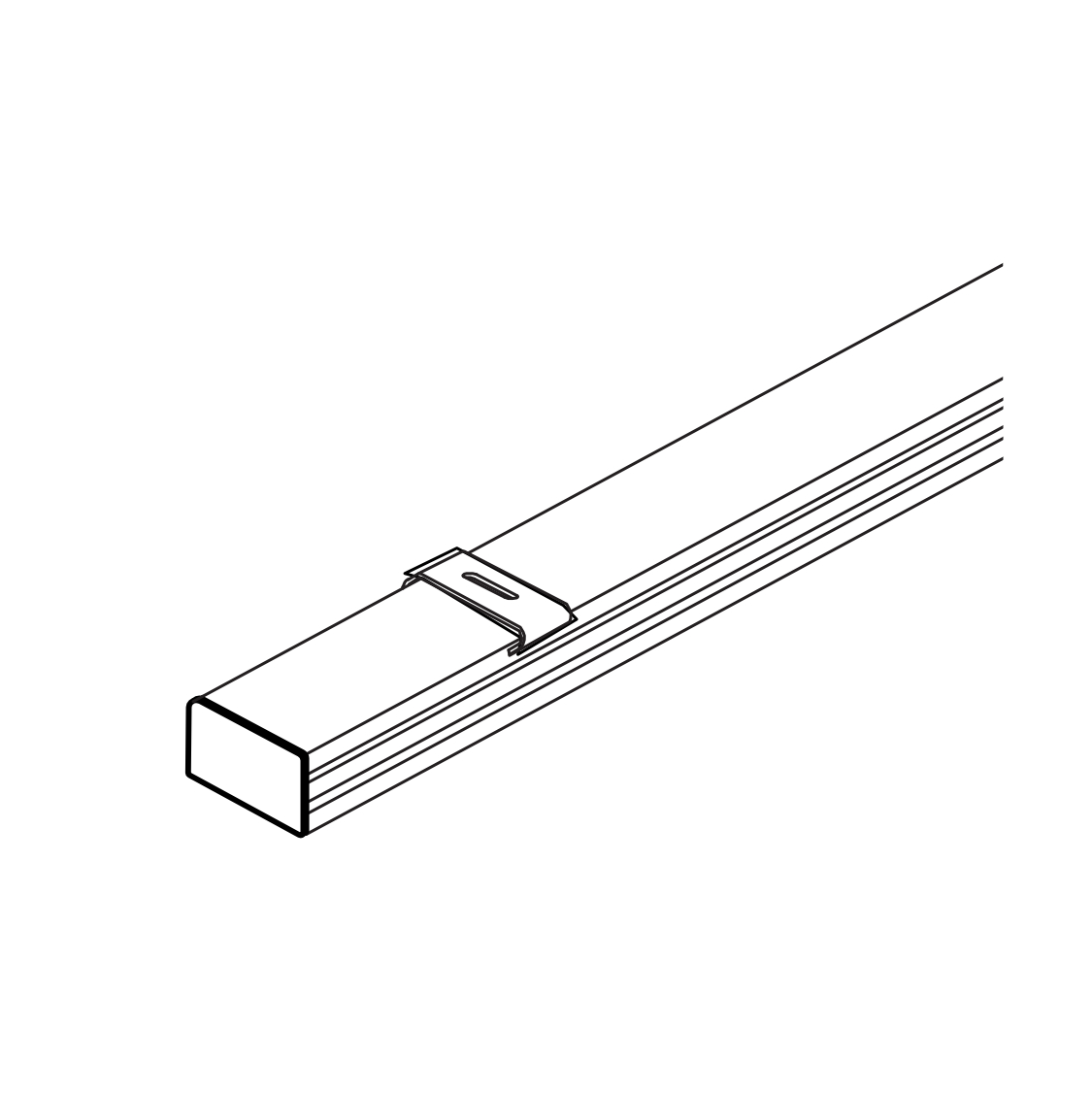

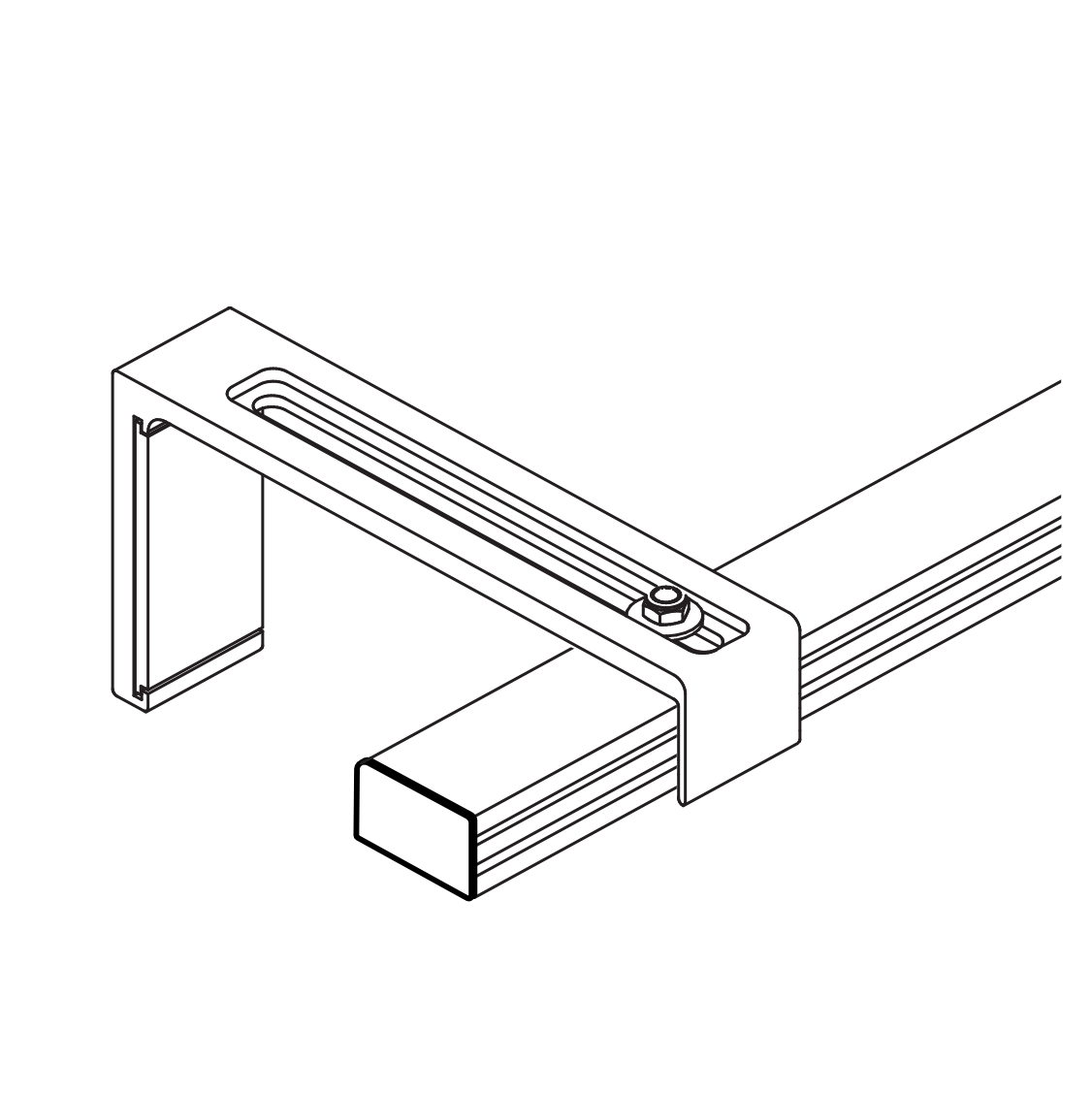

Hung from a rail
Sound-reduction is provided by Texaa® DB sound-reducing acoustic curtains.
They are highly flame-resistant and clad on both sides with run-resistant, antistatic and dirt-repellent Aeria fabric, in combination with two thicknesses of 3-mm thick sound-absorbing black felt wadding and a core of six sound-damping layers.
Each curtain is hemmed at the bottom and may be joined to others using zips inserted in their side seams, matching the colour of the fabric chosen.
Sound absorption coefficient ɑw = 0.70 (H) for a DB sound-reducing acoustic curtains 100 mm away from the curtained surface, with a fulness of 1.5 (slightly pleated)
Sound absorption coefficient ɑw = 0.75 (H) for a DB sound-reducing acoustic curtains hanging 100 mm away from the curtained surface, with a fullness of 2 (moderately pleated)
Weight: 1.650 kg / m² (curtain with no pleating)
Maximum height: 3.5 m (please consult us for greater heights).
Stretching prior to stabilisation: approximately 1%
Weighted sound reduction index: Rw(C, Ctr) = 10 (0; -2) dB
Performance of Aeria 330 g/m2 run-resistant fabric
Protection against soiling:
Hydro/oleo-phobic ≥ 5 (AATCC118 and AATCC193)
Electrostatic properties 7.1010 Ω (EN 1149-1)
B-s1,d0
Vacuum cleaning, may be removed and refitted
10 years
Select from the 30 colours in the palette. Special colours available on request.
Hung from a rail

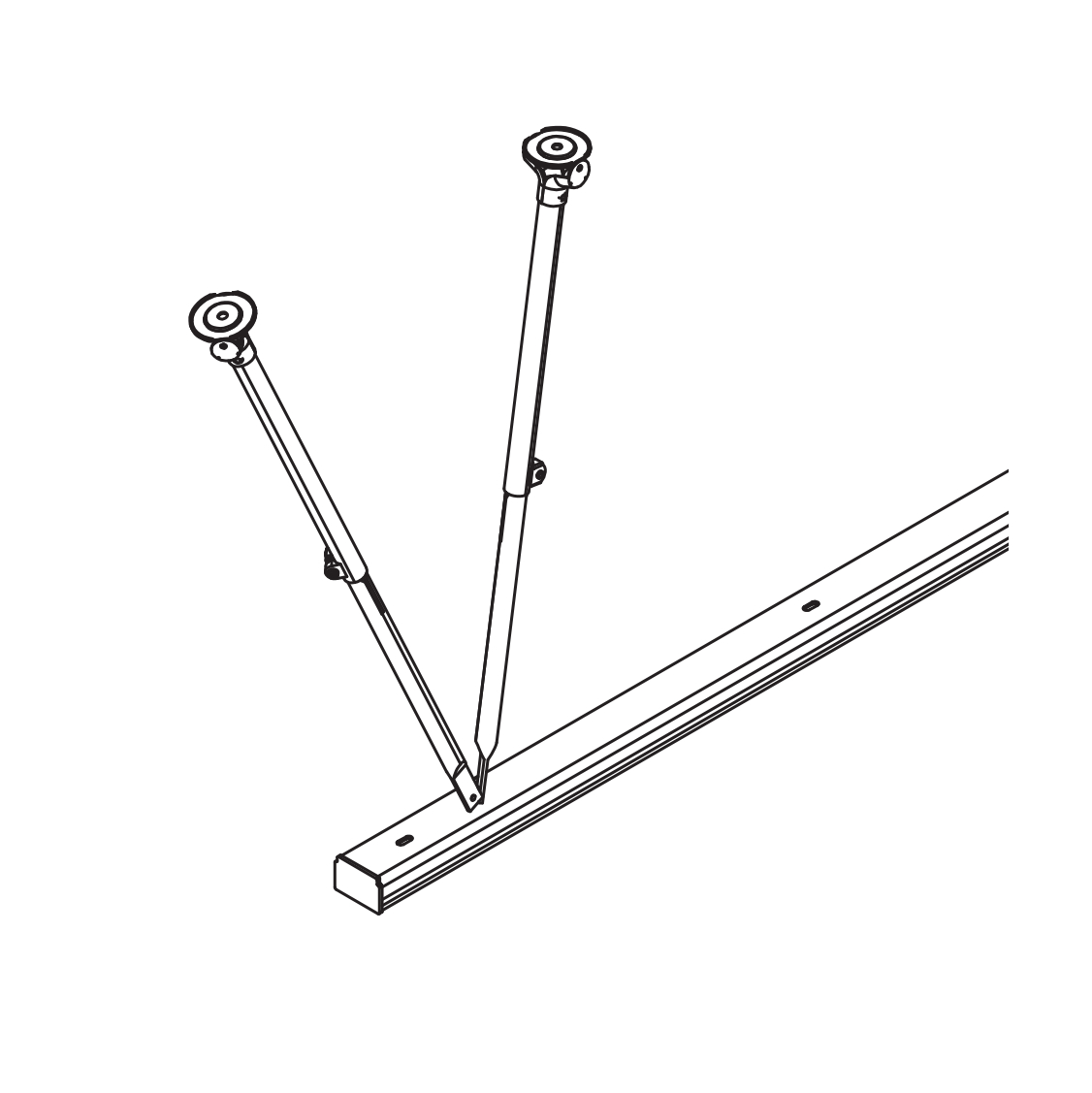

Texaa Velio drapes are hung from the ceiling on a curtain track. Knitted with Texaa’s maille ronde élargie (MRE) stitch, they are run-resistant and made from fully recycled materials. Each individual curtain is finished with a hem along the bottom and on both sides, and joined to its neighbours by hanging the first and last attachment points on shared hooks.
Characteristics
Weight: 0.550 kg / m
Maximum length: 4 m (please consult us for greater lengths)
Stretching prior to stabilisation: approximately 3%
Durability of the fabric cover
Protection against soiling:
Hydro-/oleo-phobic ≥ 5 (AATCC118 and AATCC193)
Electrostatic properties 7.1010 Ω (EN 1149-1)
European reaction to fire classification
B-s1, d0
Environmental characteristics
– VOC and formaldehyde emissions (ISO 16000)
– The curtains qualify for French “A+” health labelling and are classed
as “conforming” after assessment using the German AgBB protocol
– LEED / BREEAM: 2 points for:
– Very low VOC (Volatile Organic Compounds) and formaldehyde emissions.
– Acoustic contribution
Cleaning
Vacuum cleaning, may be removed and refitted
Guarantee
10 years
Colours
Select from the 3 MRE colours. Special colours available on request.
Option
Drapes made using the maille ronde (MR) stitch offer a choice of 30 colours
(see Aeria data sheet)
Hung from a rail
